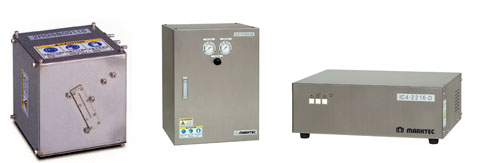

PJ-1B offers a high quality marking at reasonable price. Every unsatisfactory result of marking as less contrast, less weather resistance, low visibility of the characters and high maintenance costs can be solved with PJ-1B.
Features
- Distinct dot-matrix marking with special paint
- High speed marking (Max. 207 m/min.)
- Easy and stabilized start-up even after one week holiday
- Low running cost because of drop-on-demand marking
- Light (approx. 2.6 kg) and small marking machine
- Fully automatic operation
| Main Specification | |||
|---|---|---|---|
| Type | PJ-1B-0 | PJ-1B-1 | PJ-1B-2 |
| Character | Numerals: 10, Alphabets: 26, Symbols: 27,Special fonts: 100 (can be registered) | ||
| Character Size | 21x23 (Min.) | 15x17 (Min.) | 9x11 (Min.) |
| 48x54 (Max.) | 34x38 (Max.) | 21x24 (Max.) | |
| Marking Speed | 207m/min. | 145m/min. | 120m/min. |
| Marking Capacity | Max. numbers of Extra large character can be marked with 4L paint | ||
| 250,000 | 350,000 | 500,000 | |
| Marking Head | 3.0 mm pitch / 16 nozzles | ||
| Marking Distance | Distance between Marking Head and objective surface | ||
| less than 20 mm | less than 20 mm | less than 10 mm | |
| Communication I/F | RS 232C Serial Interface (within 19.2 Kbps) | ||
| Electric Power | AC 100V (50/60 Hz) 5A or AC 220V (50/60 Hz) 2.3A | ||
| Air | More than 0.4 MPa | ||
| Temperature | Normal temperature without dew formation | ||

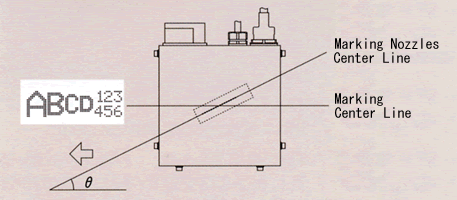

Machine Arrangement and Character Pattern
PJ-1B-0 : 90° PJ-1B-1 : 45° PJ-1B-2 : 15°

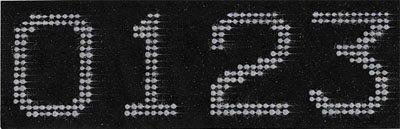

Marking samples
※ Click photograph to enlarge
Type PJ-1B-0
Type PJ-1B-1
Type PJ-1B-2
Download : Paint Jet Printer PJ-1B (PDF : 1.51KB)
