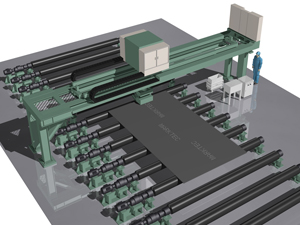

This system is installed above the plate roller transfer table and marks characters, symbols and special marks at the designated position of surface of the plate, while the plate is being transferred on the roller table, in accordance with the marking data received from host computer.
Features
- Fully automatic marking in accordance with the marking data from host computer
- Fast response pencil guns spray clear, sharp and uniform dot marking at the plate transfer speed of 120 m/min.
- 36-dot-matrix dense special marks and fonts can be registered max. 999 kinds
- Fast marking cycle/High productivity because of the marking during the plate is running
| Main Specification | |
|---|---|
| Plate to be marked | Heavy Plate |
| Plate Condition | Dry, free of water, oil and mill scale Temperature : Max. 300 degrees C Waviness : minus 5-plus 50mm/m Top/Tail edge curve : Max. plus/minus 100 mm |
| Installed Position | Above the plate roller transfer table in Plate finishing plant Line speed : Max. 120 m/min |
| Marking Specification | Marking Type : Paint dot spray type Color : White Dot Configuration : 36 dots/head x 4 heads x 2 sets Dot Diameter, Pitch : 5 mm Kind of Character : Numerals, Alphabets, Symbols, Special fonts and marks |
| Paint/Remover | Paint : Tecmarker PMK (White) Remover : Tecmarker Remover PMK |
| Main Equipment | |
|---|---|
| Marking Machine | Marking Head (36-dot x 4), Marking Head Case, Nozzle Cleaning Device and others Approx. 400 W x 350 H x1200 L mm x 2 sets |
| Pump Unit | Paint Unit : Approx. 860W x 1160H x 530D mm x 2 sets Remover Unit : ditto |
| Marking Control Panel | Print Controller (PC), Sequencer (PLC) Approx. 1600 W x 2000 H x 600 D mm |
| Marking Driver Panel | Approx. 1600 W x 2000 H x 600 D mm x 2 sets |
| Servo Driver Panel | Approx. 1200 W x 2000 H x 600 D mm |
| Main Operation Panel | Desk type Approx. 1200 W x 850 D x 800 H mm |
| Frame and Drive Unit | Bridge type frame Drive unit for Marking Machine: X-axis Transverse movement Z-axis Upward and Downward movement |
